harbour-aira

Native Sailfish OS app to monitor and control an Aira Home heat pump: plant status, domestic hot water, and the house target temperature per zone.

Versione italiana: README.it.md

architecture

What it does

  • Home: house temperature and room temperature at the top, target with a 5–30 °C slider (0.5 °C steps) and a confirmation before the command is sent; domestic hot water (current, target, boost) in its own section below; plant status at the bottom (outdoor and indoor temperature, operating mode, away/night/manual mode, inline heater, number of zones, errors, time of the last reading)
  • Other commands page: away mode, night mode for one hour, force heating, heating function on/off, legionella cycle, DHW heating on/off and a plant check — with the current state at the top, so nothing is pressed blindly
  • Cover page showing the house temperature
  • Address and bridge token live in the app settings (QSettings), never in the binary

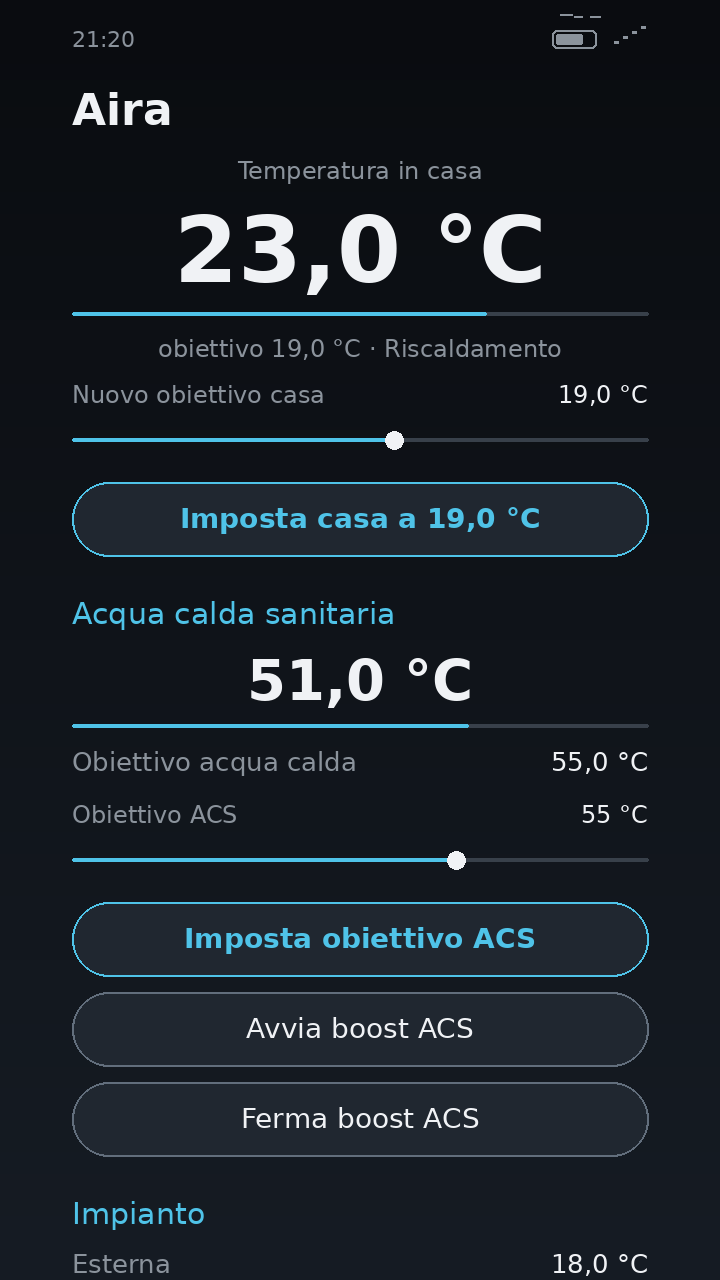

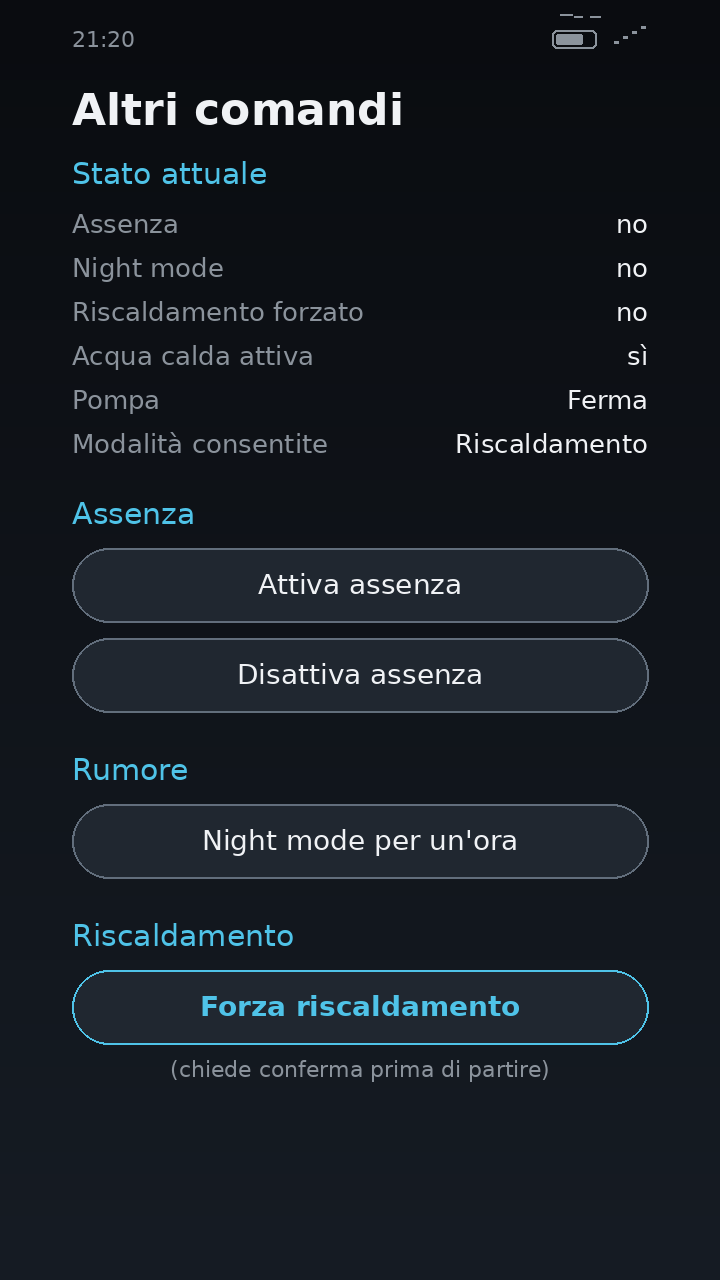

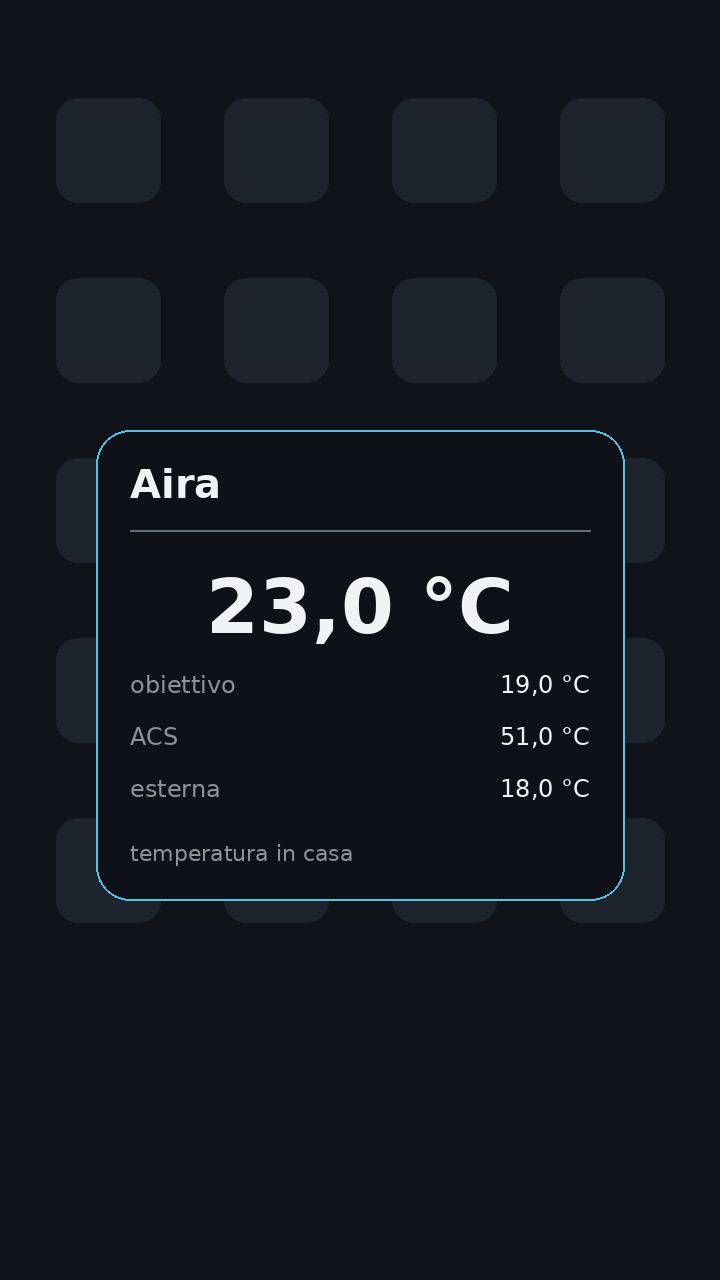

Layout previews (rendered with the real values the plant returned, not screenshots — see Status):

Home Other commands Cover
home commands cover

Why there is a bridge

Aira's cloud API is gRPC over HTTP/2. Qt 5.6 — the toolkit every Sailfish app runs on — has no HTTP/2, so a native client cannot talk to it directly. The alternatives (packaging grpcio for aarch64 with PyOtherSide, or rewriting Cognito + gRPC in C++) are fragile and expensive.

So the logic stays on a server, where Python and the tokens already work, and the app is a thin client speaking HTTP/1.1 + JSON. A side effect worth having: credentials and session tokens never leave that machine.

 Jolla (QML/C++ Qt 5.6)  --HTTP/1.1 + JSON-->  bridge (Linux, LAN)  --gRPC-->  cloud Aira
                                               bridge/aira_bridge.py

Requirements

  • a Sailfish OS phone
  • an Aira Home heat pump, with an account in the Aira app
  • the bridge running on a machine that stays on, in the same LAN (a Raspberry Pi is plenty)

The bridge

Sources, systemd user unit and full instructions: bridge/README.md. Short version:

cd bridge
python3 -m venv .venv && . .venv/bin/activate
pip install -r requirements.txt
export AIRA_CONFIG_DIR="$HOME/.config/aira"
python setup_creds.py            # Aira email + password, saved in a 600 file
python aira_bridge.py --port 8790

The first start writes a random token to $AIRA_CONFIG_DIR/aira_bridge.json (mode 600): that value goes in the app settings, together with the LAN address of the machine. Full API: docs/PROTOCOL.md.

App settings

Address and token are configured in the Settings page (QSettings in ~/.config/harbour/aira/aira.conf): no personal data in the binary.

Build

Requires the Sailfish SDK (sfdk) and an aarch64 target (Jolla Phone 2026):

sfdk target install SailfishOS-5.0.0.62-aarch64
sfdk target use SailfishOS-5.0.0.62-aarch64
sfdk build           # RPM in RPMS/
sfdk deploy          # to the connected device

From a source tarball (harbour-aira-<version>.tar.gz, if you were handed one): extract it into a new directory (never on top of a previous extraction: the Makefiles stay stale), or simply clone this repository. The app log starts with harbour-aira v<version> build <date>, which tells a fresh build from a stale one without guessing.

Local checks, no SDK needed

cd tests && mkdir -p build && cd build
~/Qt/5.15.2/gcc_64/bin/qmake ../core_test.pro && make && ./core_test

Covers the pure logic (src/airajson.cpp): address normalisation, summary parsing, mode labels, command payloads, error messages. The Silica UI can only be verified on a device.

Status

Verified so far:

  • 31/31 core checks (tests/core_test.cpp), compiled with no warnings
  • 27/27 bridge checks, offline (bridge/test_bridge_commands.py) — including that a zone command always carries every zone, and that absurd values are refused (40 °C, zone 3, text)
  • qmllint clean on every QML file. Note it validates syntax only: without the Silica module an invalid Silica property passes silently
  • read-only queries against one real Aira Home unit, through the bridge
  • the bridge runs as a systemd user unit and comes back by itself after a kill

Not verified: the app has not been built or run on a phone yet — the first build is up to whoever has the Sailfish SDK. The images in docs/anteprima/ are layout previews built from the real plant values, not screenshots.

Caveats:

  • Unofficial client, not in the Jolla Store: it talks to Aira's API with your own account. Terms of service and trademarks remain Aira's business — use it at your own risk, on your own pump
  • tested against one unit so far (firmware: outdoor unit 1.30.0, system 6.10.0, climate control 3.9.12); other units and other countries may expose different fields
  • cooling is reachable from the bridge but has no UI yet; schedules/curves and firmware info are not implemented
  • only a whitelist of commands is exposed: factory reset, firmware updates, reboots and Wi-Fi provisioning are deliberately unreachable
  • no command is ever sent to the plant by the tests

Looking for testers

If you own an Aira heat pump and a Sailfish phone, and you are willing to run the bridge on a machine at home, I would like to hear how it behaves on your unit:

  • pump model and firmware versions (visible in the Aira app)
  • how many heating zones you have (1 or 2), and whether cooling is configured
  • the output of python aira_probe.py --json (it contains no credentials)
  • anything that looks wrong next to what the Aira app shows at the same moment
  • your country, since Aira may not expose the same fields in every market

Layout

harbour-aira.pro        qmake project (icons, qml, docs)
src/airajson.{h,cpp}    pure logic, testable without the SDK
src/apiclient.{h,cpp}   QNetworkAccessManager + timeout watchdog
src/settings.{h,cpp}    QSettings in AppConfigLocation (SailJail sandbox)
src/main.cpp            context properties: appSettings, api
qml/harbour-aira.qml    ApplicationWindow + cover
qml/pages/MainPage.qml          dashboard and water/heating commands
qml/pages/CommandsPage.qml      the other commands, current state on top
qml/pages/SettingsPage.qml
qml/components/InfoRow.qml
qml/components/ActionButton.qml command button, optional confirmation
tests/core_test.cpp     core checks (headless)
bridge/                 local HTTP bridge -> see bridge/README.md
docs/PIANO.md           project plan and decisions (Italian)
docs/PROTOCOL.md        bridge API
docs/anteprima/         layout previews

License

MIT.
