harbour-aira

Native Sailfish OS app to monitor and control an Aira Home heat pump: plant status, domestic hot water, and the house target temperature per zone.

Versione italiana: README.it.md

What it does

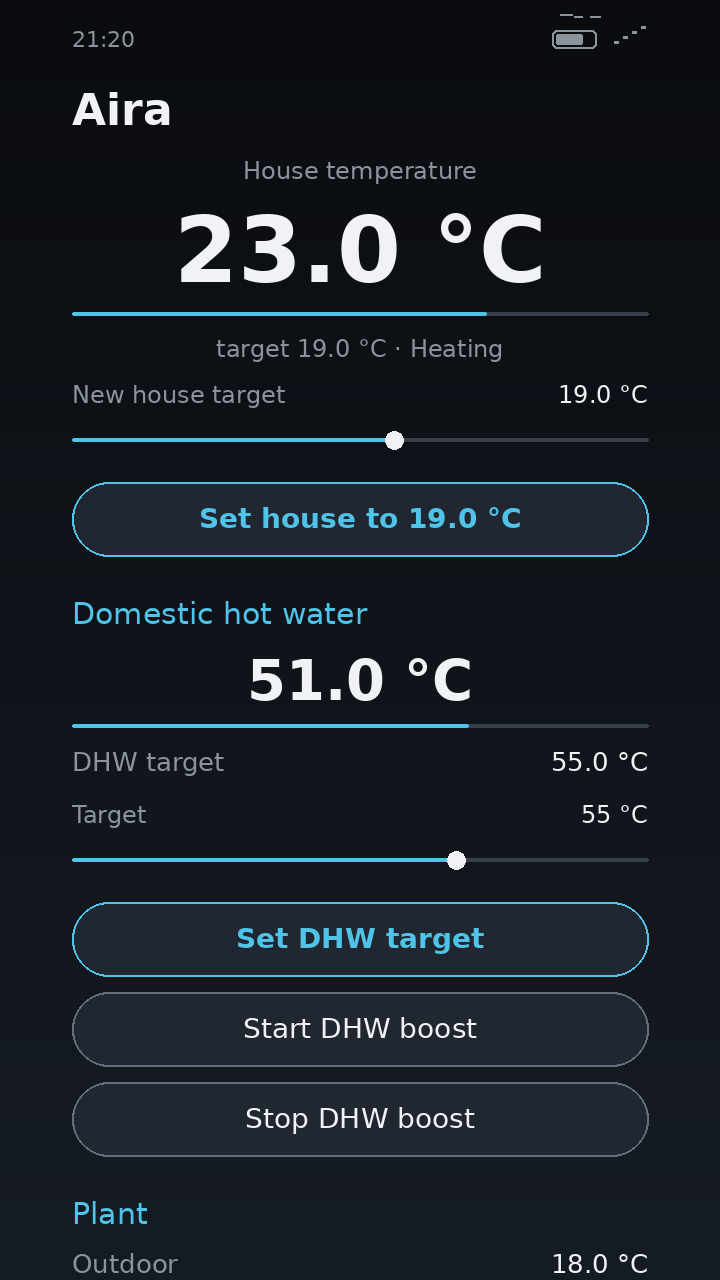

• Home: house temperature and room temperature at the top, target with a 5–30 °C slider (0.5 °C steps) and a confirmation before the command is sent; domestic hot water (current, target, boost) in its own section below; plant status at the bottom (outdoor and indoor temperature, operating mode, away/night/manual mode, inline heater, number of zones, errors, time of the last reading)

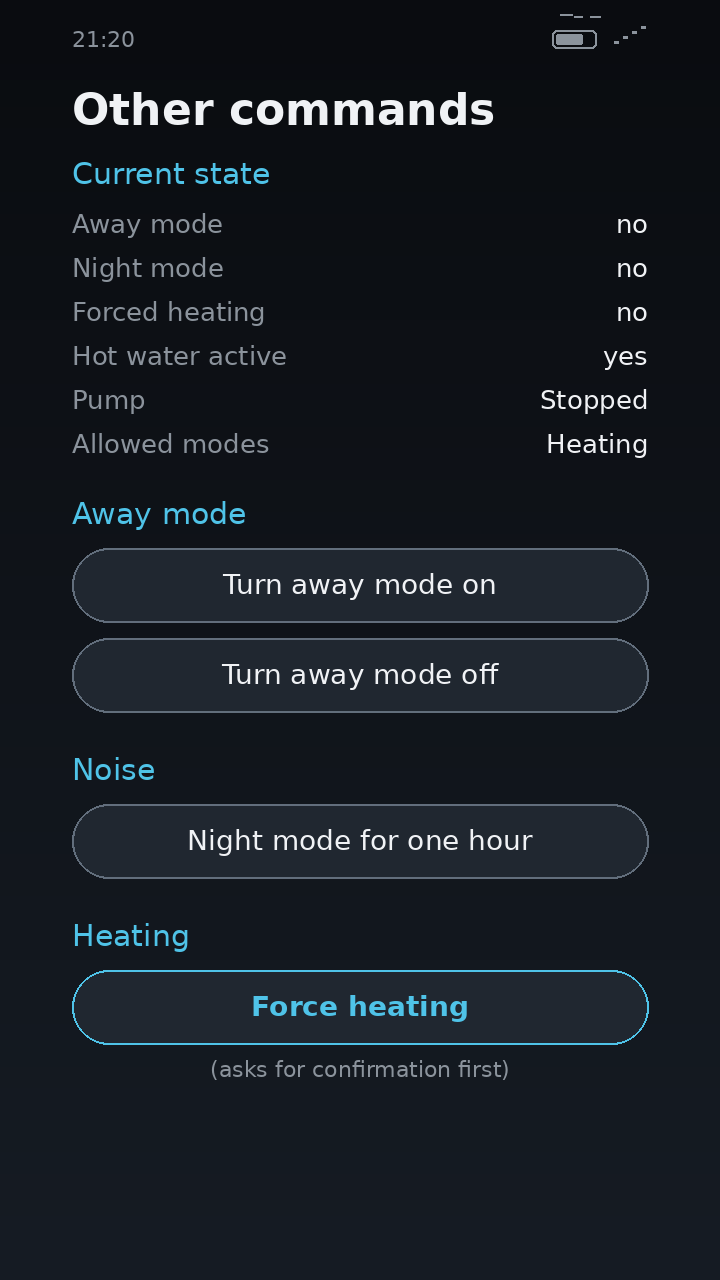

• Other commands page: away mode, night mode for one hour, force heating, heating function on/off, legionella cycle, DHW heating on/off and a plant check — with the current state at the top, so nothing is pressed blindly

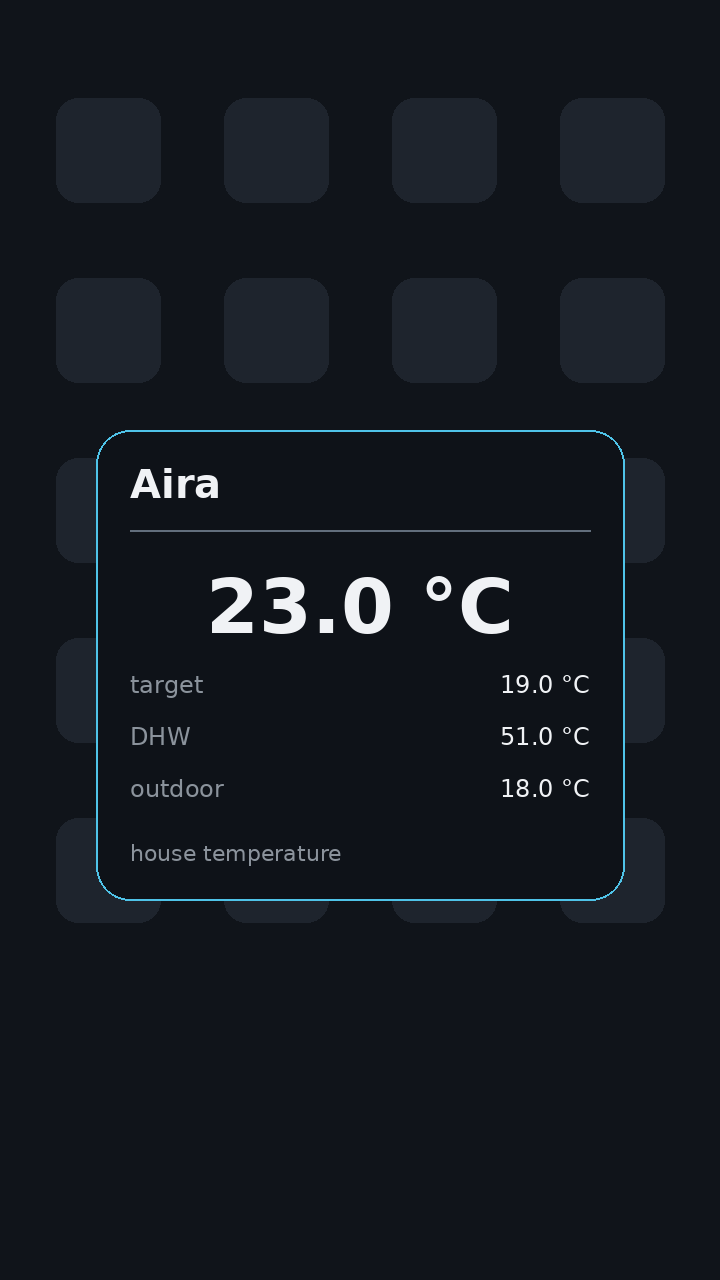

• Cover page showing the house temperature
• Address and bridge token live in the app settings (QSettings), never in the binary
• Languages: English and Italian. The interface follows the phone language by default and falls back to English when there is no catalogue for it. The language can also be picked in the settings; the app reloads to apply it, and numbers follow the chosen language too (decimal comma in Italian, dot in English)

Layout previews (rendered with the real values the plant returned, not screenshots — see Status):

Home	Other commands	Settings	Cover

Why there is a bridge

Aira's cloud API is gRPC over HTTP/2. Qt 5.6 — the toolkit every Sailfish app runs on — has no HTTP/2, so a native client cannot talk to it directly. The alternatives (packaging grpcio for aarch64 with PyOtherSide, or rewriting Cognito + gRPC in C++) are fragile and expensive.

So the logic stays on a server, where Python and the tokens already work, and the app is a thin client speaking HTTP/1.1 + JSON. A side effect worth having: credentials and session tokens never leave that machine.

 Jolla (QML/C++ Qt 5.6)  --HTTP/1.1 + JSON-->  bridge (Linux, LAN)  --gRPC-->  cloud Aira
                                               bridge/aira_bridge.py

Requirements

• a Sailfish OS phone
• an Aira Home heat pump, with an account in the Aira app
• the bridge running on a machine that stays on, in the same LAN (a Raspberry Pi is plenty)

The bridge

Sources, systemd user unit and full instructions: bridge/README.md. Short version:

cd bridge
python3 -m venv .venv && . .venv/bin/activate
pip install -r requirements.txt
export AIRA_CONFIG_DIR="$HOME/.config/aira"
python setup_creds.py            # Aira email + password, saved in a 600 file
python aira_bridge.py --port 8790

The first start writes a random token to $AIRA_CONFIG_DIR/aira_bridge.json (mode 600): that value goes in the app settings, together with the LAN address of the machine. Full API: docs/PROTOCOL.md.

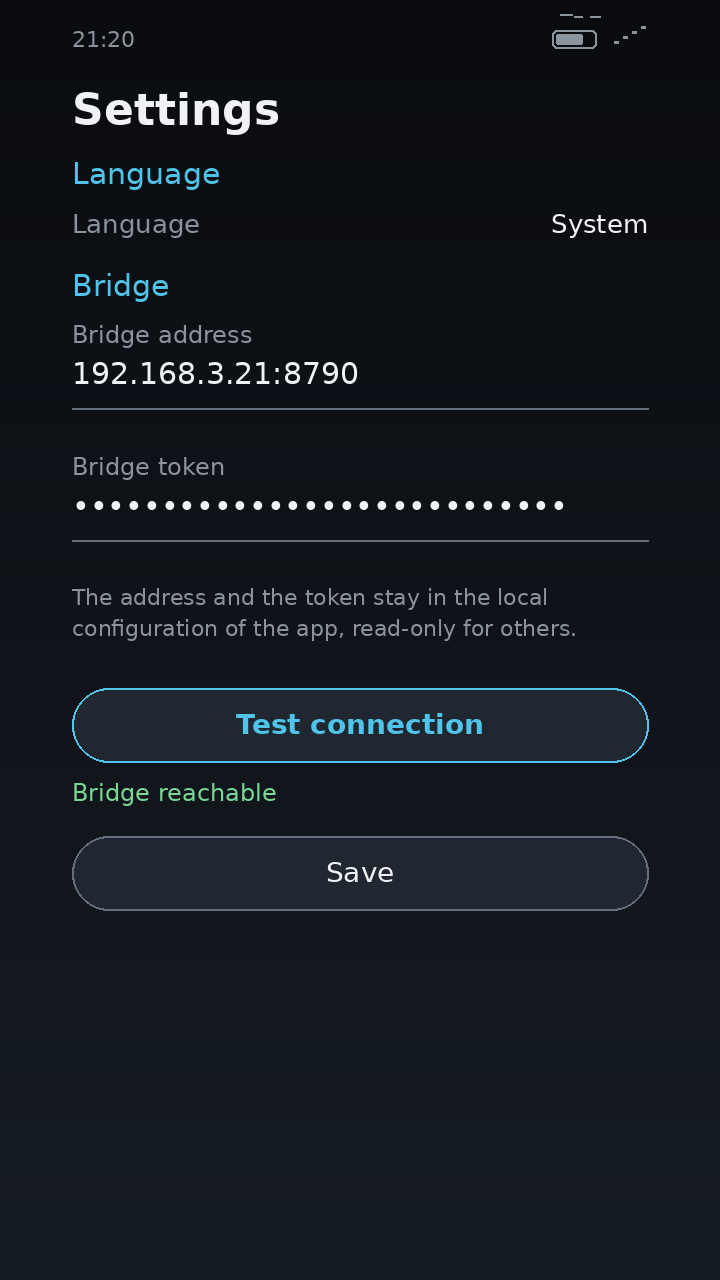

App settings

Address and token are configured in the Settings page (QSettings in ~/.config/harbour/aira/aira.conf): no personal data in the binary.

Build

Requires the Sailfish SDK (sfdk) and an aarch64 target (Jolla Phone 2026):

sfdk target install SailfishOS-5.0.0.62-aarch64
sfdk target use SailfishOS-5.0.0.62-aarch64
sfdk build           # RPM in RPMS/
sfdk deploy          # to the connected device

From a source tarball (harbour-aira-<version>.tar.gz, if you were handed one): extract it into a new directory (never on top of a previous extraction: the Makefiles stay stale), or simply clone this repository. The app log starts with harbour-aira v<version> build <date>, which tells a fresh build from a stale one without guessing.

Local checks, no SDK needed

cd tests && mkdir -p build && cd build
~/Qt/5.15.2/gcc_64/bin/qmake ../core_test.pro && make && ./core_test

Covers the pure logic (src/airajson.cpp): address normalisation, summary parsing, mode labels, command payloads, error messages. The Silica UI can only be verified on a device.

Status

Verified so far:

• 39/39 core checks (tests/core_test.cpp), compiled with no warnings
• 27/27 bridge checks, offline (bridge/test_bridge_commands.py) — including that a zone command always carries every zone, and that absurd values are refused (40 °C, zone 3, text)
• 99/99 strings translated in the Italian catalogue, checked by loading the compiled .qm in the test the same way main.cpp does: source English in, Italian out, and back to English when the catalogue is removed
• numbers formatted through QLocale, so the decimal separator follows the language (verified for both)
• qmllint clean on every QML file. Note it validates syntax only: without the Silica module an invalid Silica property passes silently
• read-only queries against one real Aira Home unit, through the bridge
• the bridge runs as a systemd user unit and comes back by itself after a kill

Not verified: the app has not been built or run on a phone yet — the first build is up to whoever has the Sailfish SDK. The images in docs/anteprima/ are layout previews built from the real plant values, not screenshots.

A Qt 5.6 note on the language switch: QQmlEngine::retranslate() only exists from Qt 5.10, so installing a translator is not enough to re-translate what is already on screen. The app therefore reloads the QML root when the language changes: the setting applies immediately, at the cost of landing back on the home page.

Caveats:

• Unofficial client, not in the Jolla Store: it talks to Aira's API with your own account. Terms of service and trademarks remain Aira's business — use it at your own risk, on your own pump
• tested against one unit so far (firmware: outdoor unit 1.30.0, system 6.10.0, climate control 3.9.12); other units and other countries may expose different fields
• cooling is reachable from the bridge but has no UI yet; schedules/curves and firmware info are not implemented
• only a whitelist of commands is exposed: factory reset, firmware updates, reboots and Wi-Fi provisioning are deliberately unreachable
• no command is ever sent to the plant by the tests

Looking for testers

If you own an Aira heat pump and a Sailfish phone, and you are willing to run the bridge on a machine at home, I would like to hear how it behaves on your unit:

• pump model and firmware versions (visible in the Aira app)
• how many heating zones you have (1 or 2), and whether cooling is configured
• the output of python aira_probe.py --json (it contains no credentials)
• anything that looks wrong next to what the Aira app shows at the same moment
• your country, since Aira may not expose the same fields in every market

Layout

harbour-aira.pro        qmake project (icons, qml, docs)
src/airajson.{h,cpp}    pure logic, testable without the SDK
src/apiclient.{h,cpp}   QNetworkAccessManager + timeout watchdog
src/settings.{h,cpp}    QSettings in AppConfigLocation (SailJail sandbox)
src/translator.{h,cpp}  UI language: system locale, English fallback, reload
src/main.cpp            context properties: appSettings, api, translator
qml/harbour-aira.qml    ApplicationWindow + cover
qml/pages/MainPage.qml          dashboard and water/heating commands
qml/pages/CommandsPage.qml      the other commands, current state on top
qml/pages/SettingsPage.qml
qml/components/InfoRow.qml
qml/components/ActionButton.qml command button, optional confirmation
tests/core_test.cpp     core checks (headless)
bridge/                 local HTTP bridge -> see bridge/README.md
translations/           harbour-aira-it.ts (English is the source language)
docs/PIANO.md           project plan and decisions (Italian)
docs/PROTOCOL.md        bridge API
docs/anteprima/         layout previews (English; docs/anteprima/it/ Italian)

License

MIT.
